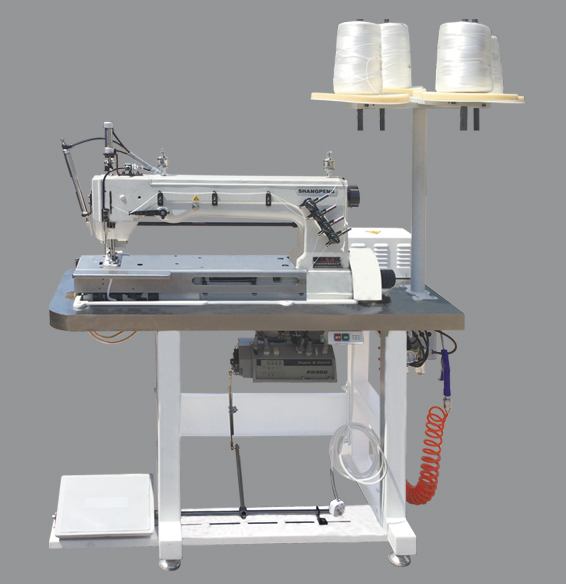

性能優點:

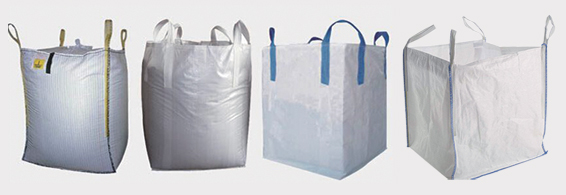

本系列產品有單、雙針。采用上下送料,自動循環潤滑,實現雙線、四線鏈紉線跡,線跡美觀,富有彈性,工作空間大(534x160mm)運轉穩定,操作靈活,特別適用大型集裝袋及其加強拉筋的縫紉。
Advantages:
This series of products has single and double needles. It adopts up and down feeding and automatic circulation lubrication to realize double and four-line chain stitching. The stitching is beautiful and elastic. The working space is large (534x160mm) and the operation is stable. It is especially suitable for the sewing of large container bags and its
reinforcement.
主要技術參數Main Parameters:
縫速高達Max.sewing speed |
2000針/分 r.p.m. |
工作轉速Woring Speed |
1800針/分 r.p.m. |
針距Stitch range |
(11-16針/100mm) |
縫度Material Thickness |
10mm以上 |
機針型號Needle Size |
DRx2-26 |
縫線規格Thread |
滌綸線21支 |
送料方式Feed |
上下同步送料 |
電動機功率Power Required |
550W 2800轉/分 |
潤滑方式Lubrication |
滴注油杯潤滑;自動循環潤滑 |
工作空間Opreting Room |
534×160mm |
